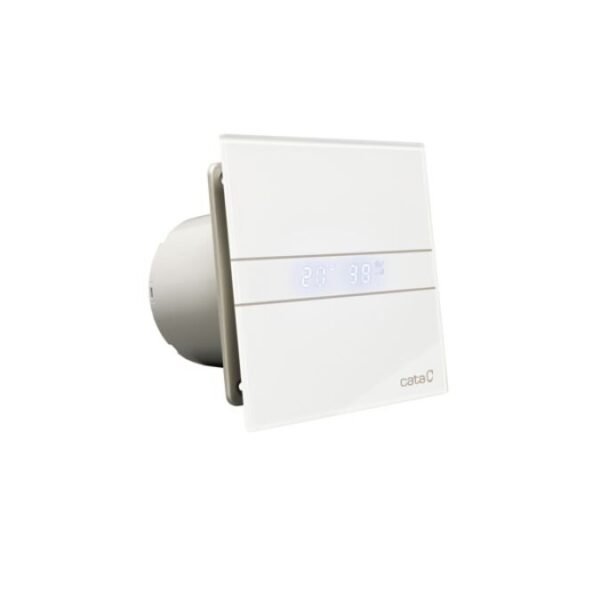

Extractor fan Cata E100 GTH

Modern bathroom exhaust fan CATA E 100 GTH - an efficient, quiet and smart solution

CATA E 100 GTH is a high-quality bathtub exhaust fan, equipped with smart functions: humidity sensor, TIMER, LED display and two ventilation speeds, allowing you to effectively control air circulation according to the needs of the room. Thanks to its modern design and tempered glass front panel, it is not only functional, but also stylish.

Dual operating mode:

• Mode 1 (continuous operation): the fan operates continuously in low mode (36 m³/h), and when the set humidity level is reached (e.g. 45 %), the higher mode (115 m³/h) is automatically activated;
• Mode 2 (standby): operates only when the humidity exceeds the set limit - then the maximum mode is activated, and after the humidity decreases, the fan turns off.

Flexible management

The fan can also be controlled with a separate switch (e.g. a light switch), allowing full control of the device's operation according to your needs.

The Cata E-100 GTH is a smart model that offers automatic humidity control, two speeds, a delay timer and an LED display. It is ideal for those who want maximum control and automation without additional buttons or switches.

Advantages:

• Two-speed motor: 36 m³/h and 115 m³/h;
• Ultra-quiet operation: only 17 dB(A) in the first mode, 31 dB(A) in the maximum mode;
• Adjustable humidity sensor: from 45 % to 90 %;
• Timer (TIMER): fan operation can be extended from 3 to 15 minutes;
• Low power consumption: only 4-8 W;
• LED display: clear and modern information display;
• The front part is made of tempered glass, the body is made of durable ABS plastic;
• Simple maintenance and cleaning mechanism;
• Suitable for wall or ceiling mounting;
• IP44 protection class, B insulation class;
• Made in Europe (Spain).

Technical characteristics:

• Power: 4 / 8 W;
• Air flow: 36 / 115 m³/h;
• Operating levels: 2;
• Diameter: 98 mm;
• Dimensions: 150 x 150 x 94 mm;
• Voltage: 220-240V / 50-60Hz;
• Sound: 17 / 31 dB (A);
• Humidity adjustment: from 45 % to 90 %.

Download product brochure
